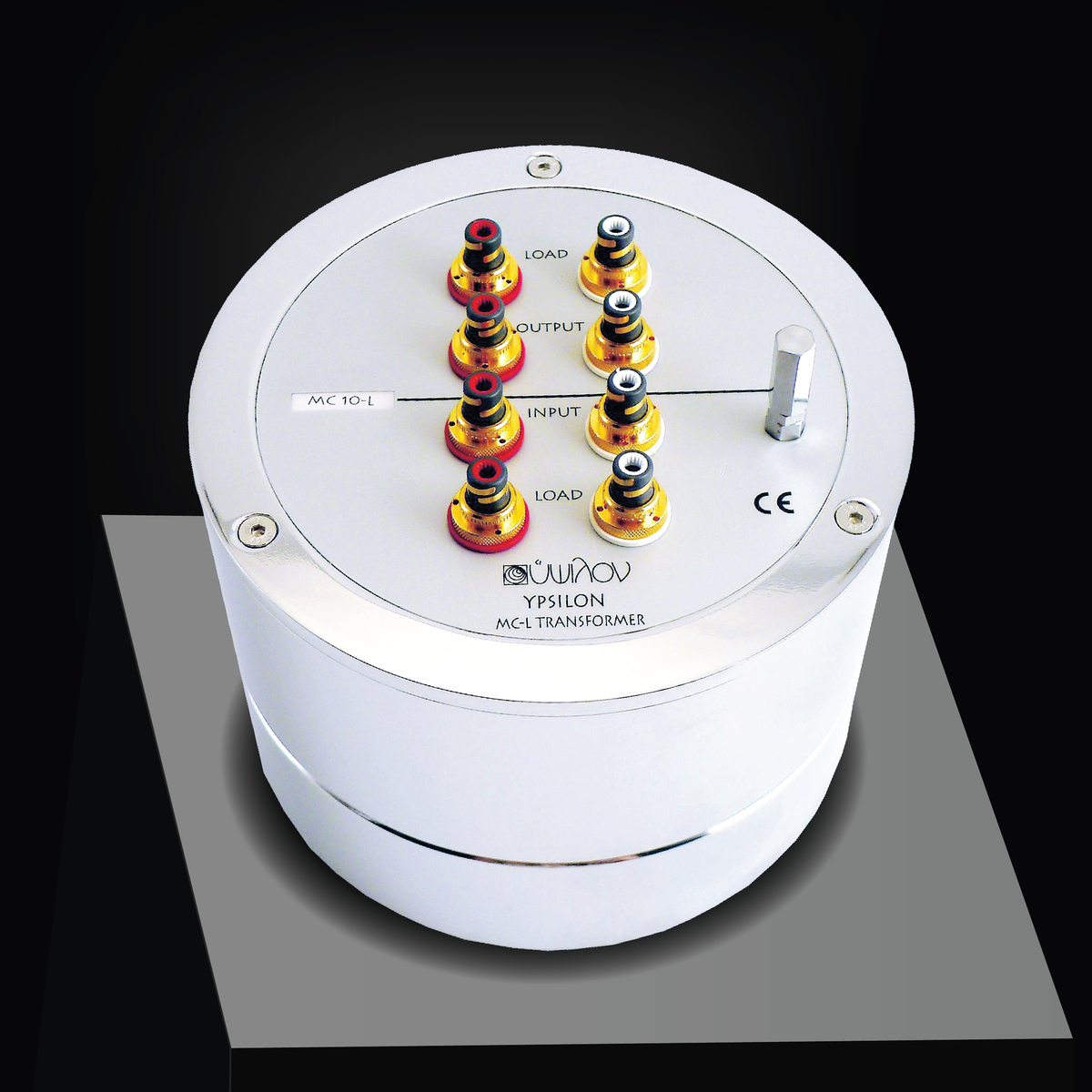

The MC-L series moving coil step-up transformers are used to amplify the low level output signal from a moving coil cartridge, bringing it to the appropriate level to drive a moving magnet phono preamp.

The MC10 provides 10 times transformation ratio or 20db of gain.

The MC16 provides 16 times transformation ratio or 24db of gain.

The MC20 provides 20 times transformation ratio or 26db of gain.

When terminated in 47k, which is the standard input impedance of MM phono preamps, the equivalent input impedance of each one would be:

MC10 500 ohm

MC16 200 ohm

MC20 140 ohm

If additional loading is needed, it can be done through the parallel input RCA connectors.

The MC series transformers are large size single C-core double coil transformers using proprietary core materials. Special winding techniques were developed in order to minimize inter-winding capacitances and maintain wide frequency response. They are optimized sonically to be as invisible as possible.

The transformers are shielded in extremely large mu-metal shells and are potted in 10mm thick soft iron nickel coated enclosures providing immunity to outside magnetic fields and a quiet and noise free performance.

The MC transformers were developed in conjunction with the VPS100 phono preamp. They can be used with most of the moving coil cartridges. For optimum performance the MC transformers can be used within a specific range of cartridge output levels.

MC10 may be used with cartridges from 0.4-0.6mv

MC16 may be used with cartridges from 0.3-0.4mv

MC20 may be used with cartridges from 0.2-0.3mv

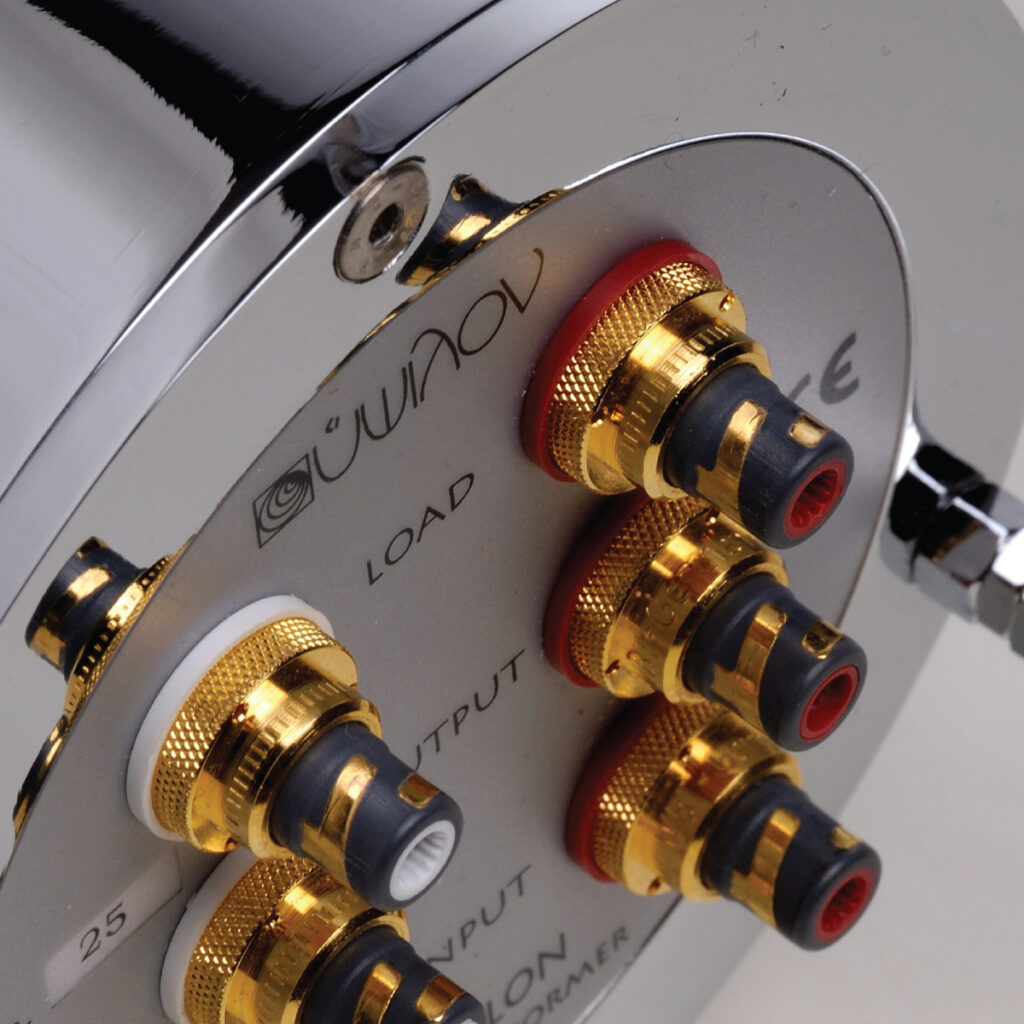

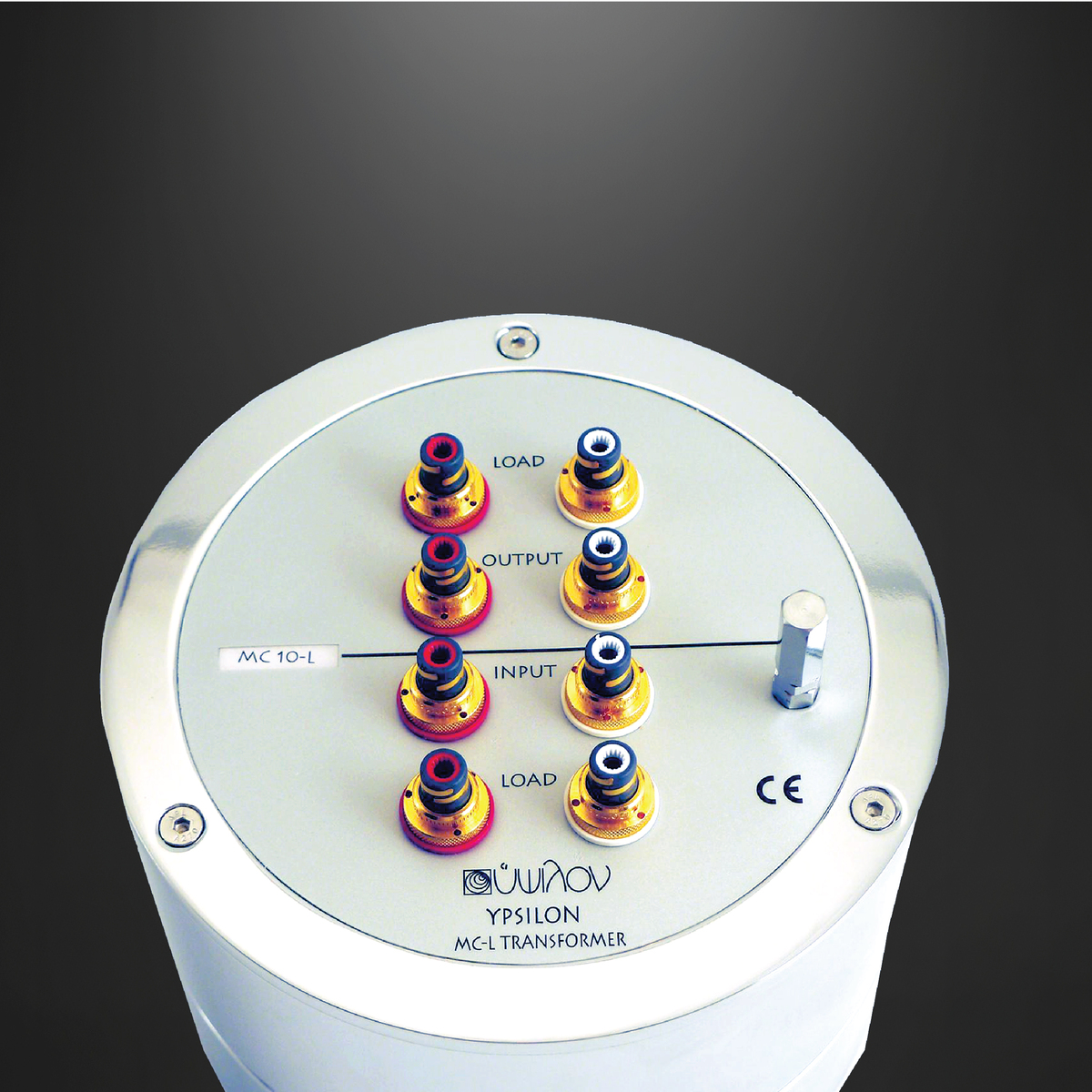

MC-L series transformers have parallel loading plugs at the input and at the output, offering the option to load the cartridge only or the cartridge – transformer system for best optimization of the analog set up.
